United Boxwall
United Boxwall is a flood control board specially designed to prevent flood caused by rainstorm by blocking water inflow and disperse water pressure and. The “L-Shape bookend Principle” make the water compressed at the bottom of the baffle and convert the weight into pressure to support the Boxwall.

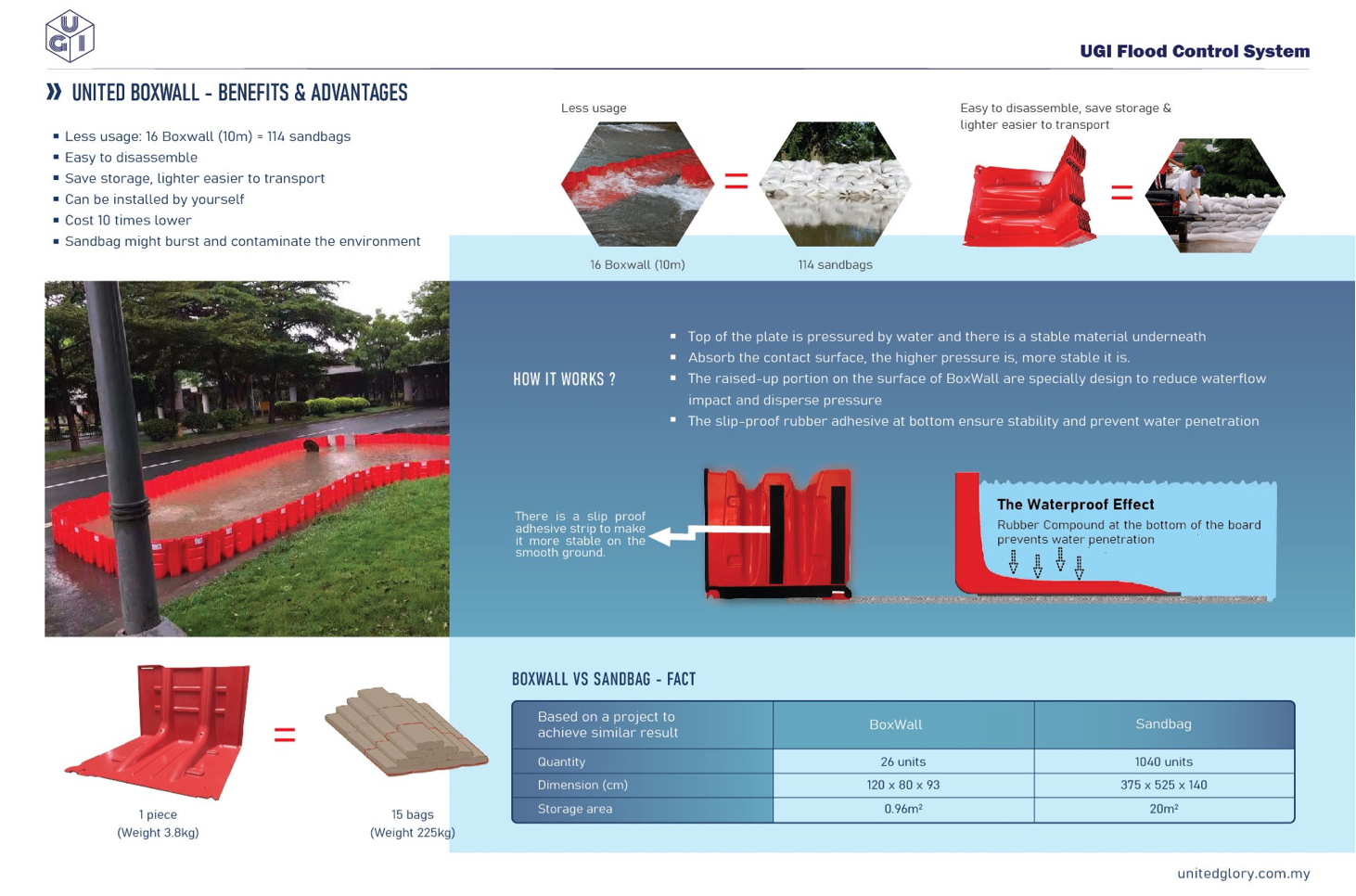

Why Boxwall?
- Easy and quick assembly, lightweight and space-saving
- Good flexibility in creating slope to handle stronger impact.
- Withstand up to maximum water pressure of 250kg/piece
- Strong material with corrosion resistance.
- Reusable - up to 20 years lifespan.
Specification
| Description | United Boxwall |
|---|---|
| Size & Weight | |
| Straight Board (DZ50) | 70cm (w) x 50cm (h) x 68cm (d) Weight 3.8kg |
| Inward Board (DN50) | 70cm (w) x 50cm (h) x 68cm (d) Weight 2.8kg |
| Outward Board (DW50) | 70cm (w) x 50cm (h) x 68cm (d) Weight 2.7kg |
| Edge Corner (DS50) | 50cm (h), 3.5kg |
| Color | Red |
| Waterproof height | 50cm |
| Curvature | Adjustable+/- 3 degrees |
| Installation speed (1 person) | 10m per minute |
| Average thickness | 5mm±5% |
Measurement

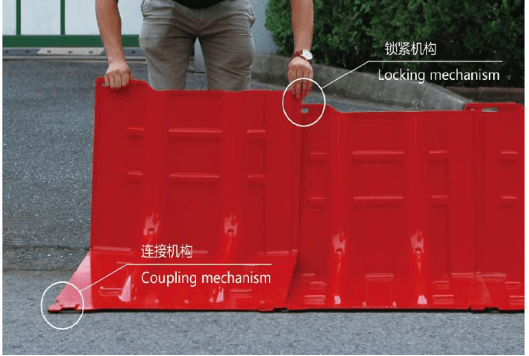

Installation
EasyBoxwall is light and easy to install and can be functioned effectively once assembled.

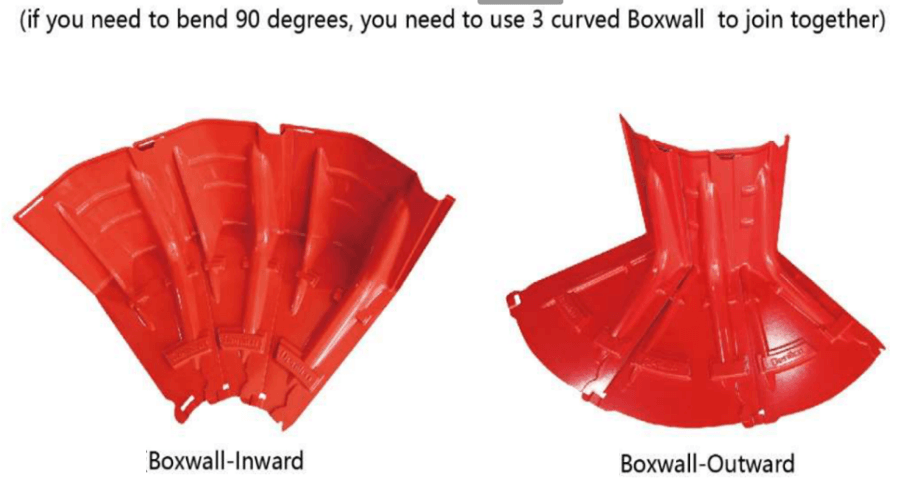

- The camber angle of Boxwall can be adjusted to +- 3 degree
- Each unit of Boxwall can be adjusted to curvature degree of 30
