United Gabion.
United Gabion

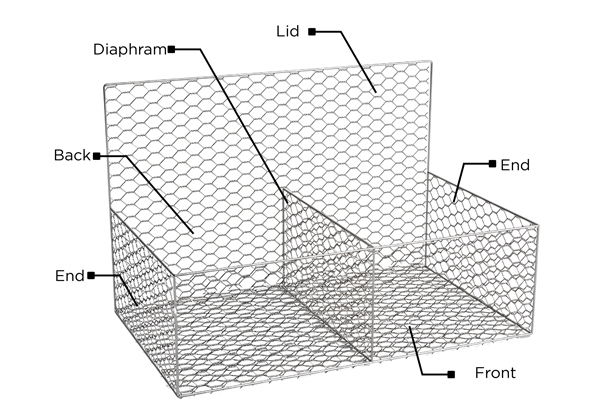

UNITED GABION is a rectangular wire mesh basket fabricated from high-strength galvanized steel wire or PVC-coated wire mesh, designed to be filled with durable rock or stone material. When assembled and filled, gabion boxes form flexible, permeable, and long-lasting structures for a wide range of civil engineering, hydraulic, and environmental applications.
United Glory Industry’s Gabion Boxes are manufactured to stringent quality standards, providing superior strength, durability, and resistance to corrosion in challenging environments. Their flexible structure allows them to adapt to ground settlement without failure, while their permeability enables natural drainage, reducing hydrostatic pressure behind retaining structures.
UNITED Gabion are widely used for:

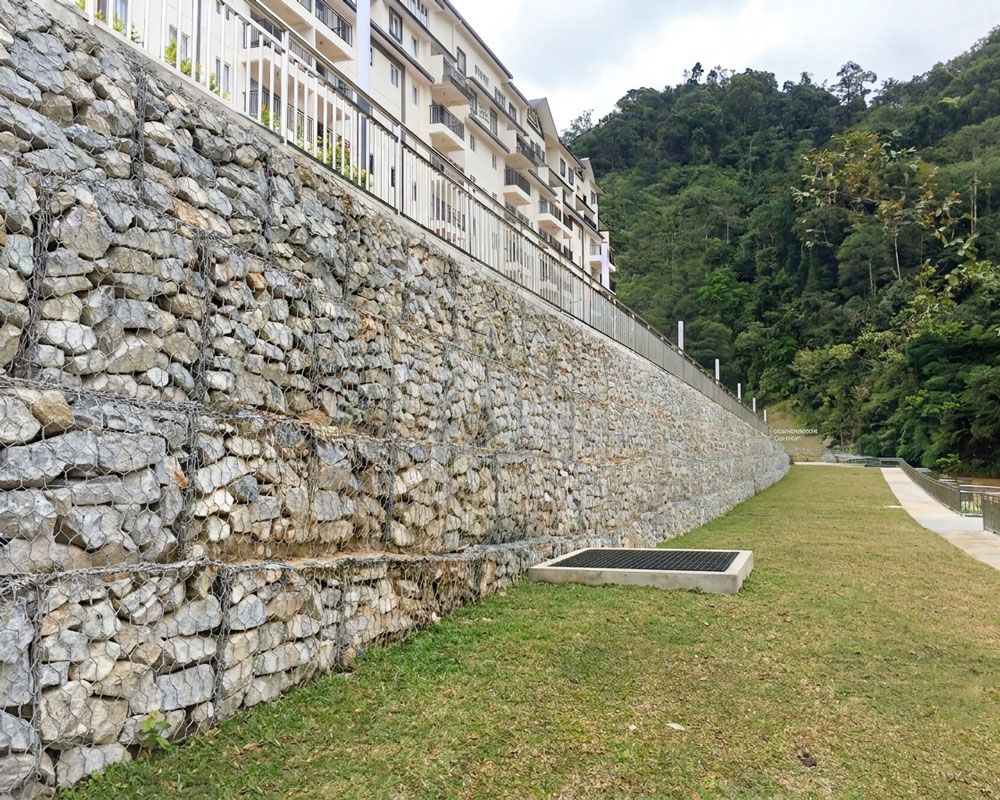

- Retaining walls and earth retention systems
- Slope stabilization and landslide protection
- Riverbank and shoreline erosion control
- Channel lining and drainage protection
- Bridge abutment and culvert protection
- Flood mitigation and infrastructure protection
- Landscape and architectural applications
Technical Features & Benefits
02
High-Durability Coating Options
Available in heavy Zinc-Galvanized, Galfan (Zinc-Aluminium alloy), or PVC-coated wire to ensure maximum corrosion resistance in highly aggressive marine, acidic, or water-logged environments.
Specification Table
| Length (m) | Width (m) | Height (m) |
|---|---|---|
| 1 | 1 | 1 |
| 2 | 1 | 1 |
| 3 | 1 | 1 |
| 1 | 1 | 0.5 |
| 2 | 1 | 0.5 |
| 3 | 1 | 0.5 |
| 1 | 1 | 0.5 |
| 2 | 1 | 0.5 |
| 3 | 1 | 0.5 |
| 8 x 10 | 83mm x 114mm |
| 6 x 8 | 64mm x 83mm |
| Wire Specification | Diameter (mm) | Zinc Coating Weight (g/m2) |
|---|---|---|
| Selvedge Wire | 3.5 | 275 |
| Mesh Wire | 2.2/2.7 | 240/260 |
| Lacing Wire | 2.2 | 240 |
| Wire type | Heavy Zinc-Galvanized, Zinc-Aluminium alloy , or PVC-coated wire | |
