BRC Fencing
United BRC Fence

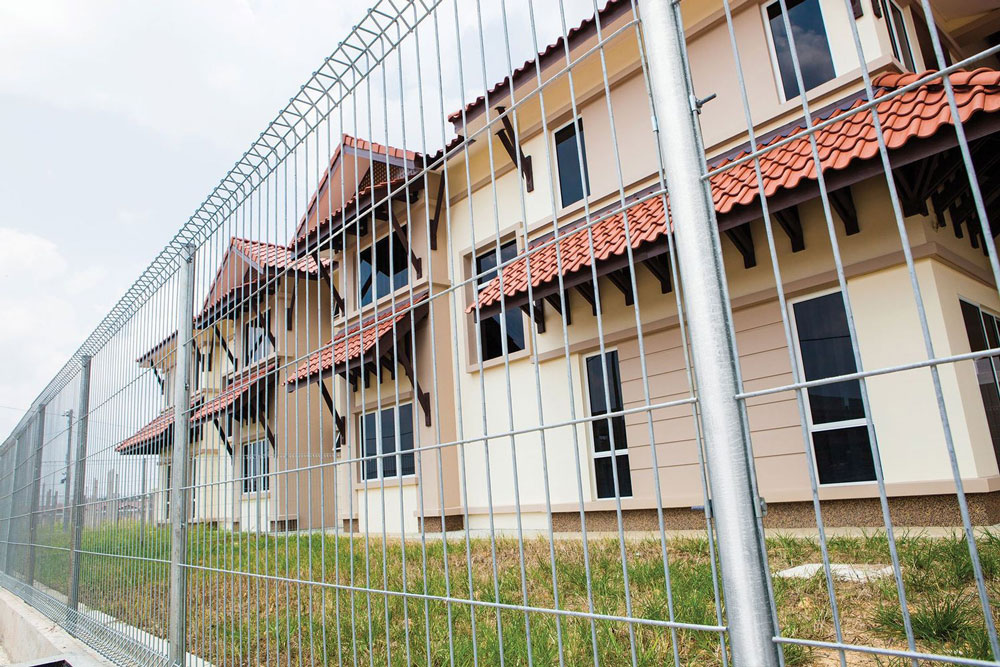

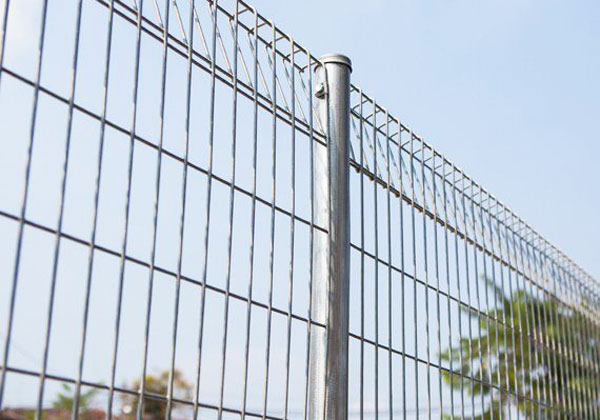

UGI BRC Fence system (commonly known as roll-top fencing or FA Series) is rigid welded wire mesh solution designed for environments where both structural rigidity and safety are required. Fabricated from high-tensile steel wire, each panel features an iconic triangular “rolled” profile at the top and bottom edge. This unique geometry eliminates sharp, exposed wire ends while drastically increasing the fence’s resistance to bending or sagging over time.
Technical Features & Benefits
01

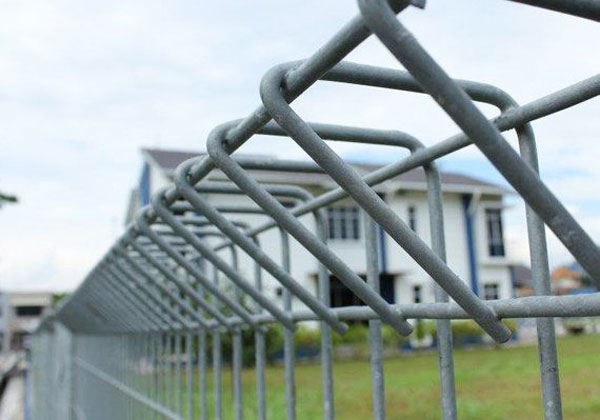

Rigid Roll-Top & Bottom Edge
The specialized triangular profile reinforces the panel structure, ensuring the fence remains perfectly rigid and completely eliminates sagging or bending over time.
02
Safe, Injury-Free Profile
The smooth, rolled design eliminates dangerous sharp wire edges, making it the ideal choice for public areas and child-friendly environments.
03
Interlocking Strength & Impact Resistance
Constructed from heavy-gauge steel wire welded firmly at every intersection to resist physical impacts and deter basic trespassers.
04
Weatherproof Anti-Corrosion Finishes
Available in thick Hot-Dip Galvanized (HDG) or premium powder coatings to withstand Malaysia’s humid tropical climate and prevent rust.
Specification Table
FA series
| Mesh Spacing (mm) | Vertical (50) | Horizontal (150) |
|---|---|---|
| Wire Diameter (mm) | Ø5.0 | Ø5.0 |
| Panel Size Height x Length (mm) | 900 x 2400 | 900 x 2400 |
| 1200 x 2400 | 1200 x 2400 | |
| 1500 x 2400 | 1500 x 2400 | |
| 1800 x 2400 | 1800 x 2400 | |
| 2100 x 2400 | 2100 x 2400 | |
| 2400 x 2400 | 2400 x 2400 | |
| Post Specification (mm) | ULTRAGAL POST Ø60 (GALVANIZED U-CLIP & MB Bolt, Nuts) | ULTRAGAL POST Ø60 (GALVANIZED U-CLIP & MB Bolt, Nuts) |
FB series
| Mesh Spacing (mm) | Vertical (75) | Horizontal (300) |
|---|---|---|
| Wire Diameter (mm) | Ø6.0 | Ø6.0 |
| Panel Size Height x Length (mm) | 900 x 2400 | 900 x 2400 |
| 1200 x 2400 | 1200 x 2400 | |
| 1500 x 2400 | 1500 x 2400 | |
| 1800 x 2400 | 1800 x 2400 | |
| 2100 x 2400 | 2100 x 2400 | |
| 2400 x 2400 | 2400 x 2400 | |
| Post Specification (mm) | ULTRAGAL POST Ø60 (GALVANIZED U-CLIP & MB Bolt, Nuts) | ULTRAGAL POST Ø60 (GALVANIZED U-CLIP & MB Bolt, Nuts) |
Available in Hot-Dip Galvanized, Galfan Wire, Heavily Galvanized Wire & Powder Coating. Any Custom-Made Order is Available in our Factory (Minimum Order Quantity may be applied).
Download the UGI catalogue.
Tell Us About Your Project
Connect with Our Product Experts for Custom Solutions and Pricing Details.
